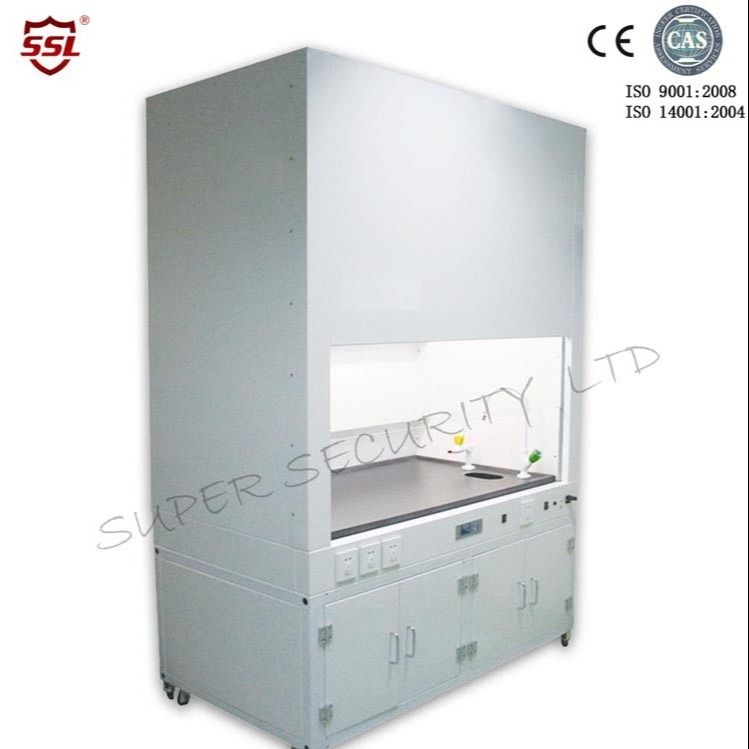

Cold-roll Steel Chemical Fume Hood IP 20 Class I Lab Fume Hood with Built-in Centrifugal Fan

Cold-roll Steel Chemical Fume Hood IP 20 Class I Lab Fume Hood with Built-in Centrifugal Fan

Production Description

UV lamp. Sterilize the working area.
LCD display screen. See the air velocity directly.
The pan is inside. Easy to install, save time.
The air velocity is adjustable ( 6 levels )
Electrical controlled glass.
Removable work surface. Easy to clean.

Model	FH7-1000	FH7-1200	FH7-1500	FH7-1800
Nominal size	1 meters(3')	1.2 meters (4')	1.5 meters (5')	1.8 meters(6')
External Dimensions	1000×750×2200	1200×800×2200	1500×800×2200	1800×800×2200
(W×D×H)
Internal Work Area Dimensions(W×D×H)	820×620×750	1020×670×750	1320×670×750	1620×670×750
UV Lamp	20W	21W	30W	30W
Power consumption	150W	150W	235W	235W
Air velocity	0.5m/s
Noise dBA	≤ 60
Blower	Built-in centrifugal fan
Air outlet	Φ290mm
Illumination	≥450Lux
Sash window	5mm double layer tempered glass
Max sash opening	450mm
Electrical	110-220V/50-60Hz
Base Cabinet	620mm
Standard Accessory	4m PVC Duct , base cabinet, Water tap,1 Water sink1, Gas tap1, Electrical outlets2, Fluorescent Light1,UV Lamp1
Construction	Main body : 1.2mm Cold-roll steel sheets with epoxy coating
	Liner: Melamine board
	Worktop: chemsurf chemical-resistant laminate
Optional Accessory	Filter: HEPA filter/Carbon Filter
Net Weight(kg)	200	230	280	330

Application

FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors.
