Thông tin chi tiết sản phẩm
Place of Origin: CHINA
Hàng hiệu: SSL
Chứng nhận: ISO9001&14001
Model Number: FH7-1800
Điều khoản thanh toán & vận chuyển
Minimum Order Quantity: 1
Giá bán: Negotiation
Packaging Details: Standard Paper Box on the Plywood Pallet
Delivery Time: 10-15 Days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500 per month
Mô hình: |
FH7-1800 |
Lớp bảo vệ: |
lớp tôi |
Loại bảo vệ: |
IP20 |
Vận tốc không khí (m/s): |
≥0,5m/s |
ồn: |
≤60dB(A) |
cổ áo ống: |
Φ290 |
Mô hình: |
FH7-1800 |
Lớp bảo vệ: |
lớp tôi |
Loại bảo vệ: |
IP20 |
Vận tốc không khí (m/s): |
≥0,5m/s |
ồn: |
≤60dB(A) |
cổ áo ống: |
Φ290 |

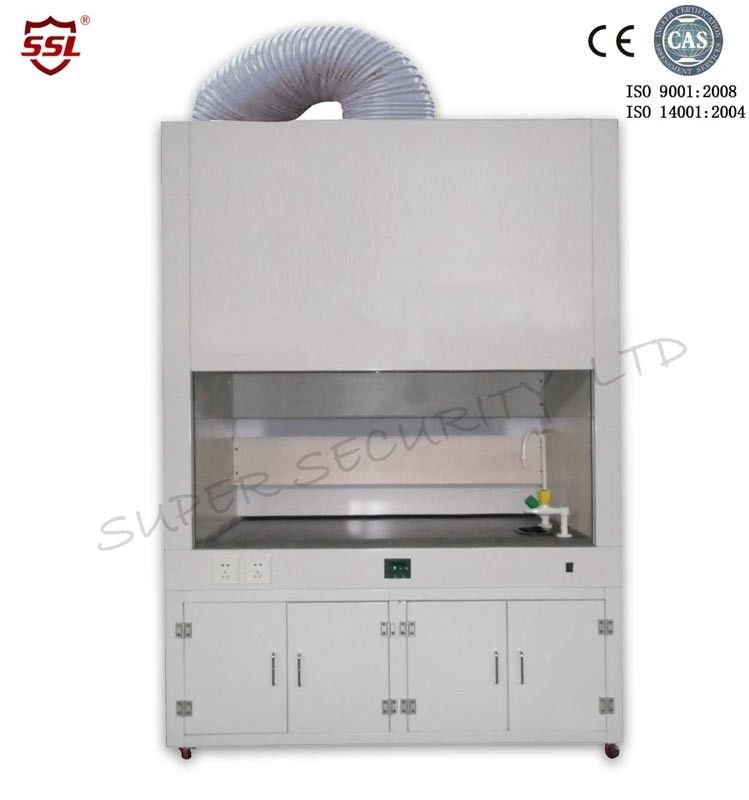

Customized steel lab fume cupboard Chemical laboratory fume hood for Inspection and testing center
Application
FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors.
All-steel fume hood is combined cabinet ,fume cupboard at the top ,operation table in the middle ,the bottom is cabinet ,including water,electricity,gas pipeline system ,three-step steam guidance,air draft no dead corner,can effectively remove poisonous gas .
Production Description:
Fume Hood Specification:
|
Name |
Value |
|
Brand |
SOPERSL |
|
Model |
FH7-1800 |
|
Base Cabinet (Optional) |
Height is 620mm, the exterior size include the cabinet height |
|
Protection Class |
Class I |
|
Protection Type |
IP 20 |
|
Air Velocity (m/s) |
≥0.5m/s |
|
Noise |
≤60dB(A) |
|
Pipe Collar |
Φ290 |
|
Pipe Strap |
1pc |
|
Fluorescent Lamp |
36W*1 |
|
UV Lamp |
30W*1 |
|
Exhaust Duct |
PVC, standard length: 4 meters |
|
Blower |
Centrifugal fan, speed adjustable. The fan inside the Fume Hood |
|
Glass window |
Two layer toughen glass, 5mm thickness; Motor control, height adjustable |
|
Power supply |
110-220V/50-60Hz(optional) |
|
Power consumption |
800W-1400W |
|
Standard Accessory |
Water tap: One Water cup: one Gas tap: two Air tap: one Water proof socket: two |
|
Material |
Exterior body :Cold-roll steel sheets, coated with any-bacteria power Interior: Adopts high grade melamine board with good acid and alkali resistance function Work table: Using Solid Chemical-Resistant physiochemical board |
|
Optional Accessory |
Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter |
|
Ext. sizes(L*W*H) |
1800×800×2200mm |
|
Work size(L*W*H) |
1620×670×750mm |
|
Net Weight(kg) |
300 |
|
Gross Weight(kg) |
450 |
|
Warranty |
One year |
Details:
Control board:
Touch, intelligent control panel, conditioning exhaust capacity, wind makeup,control light,sockets.
Worktop: Using Solid Chemical-Resistant physiochemical board. Customize is acceptable.
Cabinet Body: all-steel cabinet, coated with any-bacteria power
Water tap, gas tap- water cup
