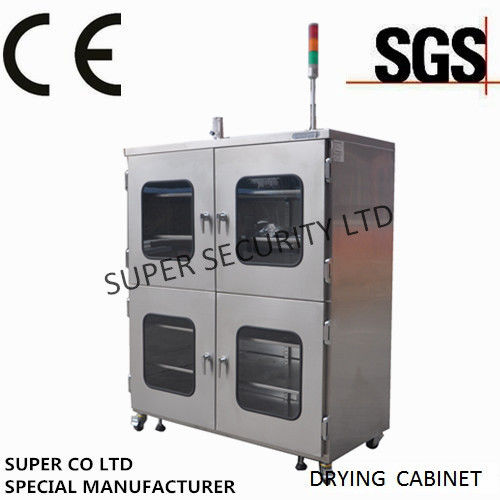

Electronic Stainless Nitrogen Dry Box / Cabinet with towder light

Thông tin chi tiết sản phẩm

Place of Origin: CHINA

Hàng hiệu: SSL

Chứng nhận: ISO9001

Model Number: DCN81400L-4S

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity: 5

Giá bán: negotiable

Packaging Details: Standard Paper Box on the Plywood Pallet

Delivery Time: 7-10 Days after receive the payment

Payment Terms: T/T or L/C at sight

Supply Ability: 1500 per month

Nhận giá tốt nhất
Làm nổi bật:

hộp kiểm soát độ ẩm

,

tủ lưu trữ nitơ

,

hộp lưu trữ nitơ đặt trên sàn

Phong cách:
Đứng sàn
Chức năng:
Hút ẩm
Kiểm soát độ ẩm:
bộ điều khiển vi mô (MCU)
Vật tư:
Không gỉ
Đặc biệt:
Bằng chứng gỉ
Kiểm soát:
Làm khô nitơ
Phong cách:
Đứng sàn
Chức năng:
Hút ẩm
Kiểm soát độ ẩm:
bộ điều khiển vi mô (MCU)
Vật tư:
Không gỉ
Đặc biệt:
Bằng chứng gỉ
Kiểm soát:
Làm khô nitơ
Electronic Stainless Nitrogen Dry Box / Cabinet with towder light

Electronic Stainless Nitrogen Dry Box / Cabinet with towder light





Applications:


Its typical applications include the prevention and protection against all types of oxidation (rust), the prevention of the growth of fungus on optics, the dry preservation of lab materials and samples as well as the protection of MSDs (moisture sensitive devices) as per IPC/JEDEC J-STD-033 within the electronics industry.
Suitable for storing: Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.
It can prevent them from oxygen and mildew, which are widely used in laboratory, electronic industry, hospital, research department.



Specifications:


N2 gasCabinet-Four  Doors Type

Cabinets suitable for processing and storage of electronic components.

Humidity range:1% ~ 60% RH

Model :DC81400L-4S Windows

Outside:W1200*D720*H1910mm

Inside:W1198*D682*H1723mm

Sheet:5pcs,Each with 150kg loading

Power:85V-265V,50HZ/60HZ

Weight: 220kg Capacity:1400L

LED Display:yes(Honeywell)



Remarks:

All models can be chosed stainless material.

With casters on the base

Can choose Anti-ESD dark green color.

Customized size accepted



ELECTRONIC COMPONENT USE



Features:

1) Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

2) 1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass, import sensor.

3) Moisture absorbs continuously with sustention for 24hours

   Cost lowering through nitrogen (N2) gas replacement and combination N2 with other substance.

4) Zinc alloy lock with plus pressure capability. Strong, rusty proof stainless 304 material. On the base truckle with brake .

5) Slip layer board make the inter space adjustable.

6) Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.



Electronic Stainless Nitrogen Dry Box / Cabinet with towder light 0Electronic Stainless Nitrogen Dry Box / Cabinet with towder light 1







Digital Temp Display &  RH Control

Electronic Stainless Nitrogen Dry Box / Cabinet with towder light 2                    Powder supply direct connection

                    No need of battery

                    Digital LED-Honeywell display and control, with UP and DOWN bottom.



Competitive Advantage:

Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise



Any size and spec are available for our customized Auto Nitrogen Gas Cabinet

For storing and keeping moisture sensitive device (MSD) and oxygen sensitive device (OSD)

Fast dehumidifying speed, the humidity of inner cabinet can drop down under 10%RH in several minutes



Using micro-controller unit (MCU) to acquire digital data and real time control the nitrogen gas supply. When the humidity is below the set point value, the system will switch off the nitrogen gas supply. Once the humidity is higher than the set point value, the system will switch on the nitrogen gas supply. It will economize nitrogen gas.




Model Door type Overall Size H×W×D(mm) Interior size H×W×D(mm) Sheet Capacity(L) Voltage N.W.
(KG)
DCN898LS 1,manual 688×448×400 598×446×372 1 98 85V-265V
50Hz/60Hz
20
DCN8160LS 1,manual 1010×448×450 848×446×422 3 160 85V-265V
50Hz/60Hz
31
DCN8240LS 1,manual 1310×598×400 1148×596×372 3 240 85V-265V
50Hz/60Hz
43
DCN8540LS 1,manual 1465×598×710 1298×596×682 3 540 85V-265V
50Hz/60Hz
70
DCN8718LS 1,manual 1910×598×710 1723×596×682 5 718 85V-265V
50HZ/60HZ
85
DCN8320LS 2,manual 1010×900×450 848×898×422 3 320 85V-265V
50HZ/60HZ
54
DCN8435LS 2,manual 1010×900×600 848×898×572 3 435 85V-265V
50HZ/60HZ
60
DCN8870LS 2,manual 1890×900×600 1700×898×572 3 870 85V-265V
50HZ/60HZ
106
DCN81400L-6S 6,manual 1910×1200×710 1723×596×682 5 1436 85V-265V
50HZ/60HZ
147
DCN81400L-4S 4,manual 1910×1200×710 1723×596×682 5 1436 85V-265V
50HZ/60HZ
147
